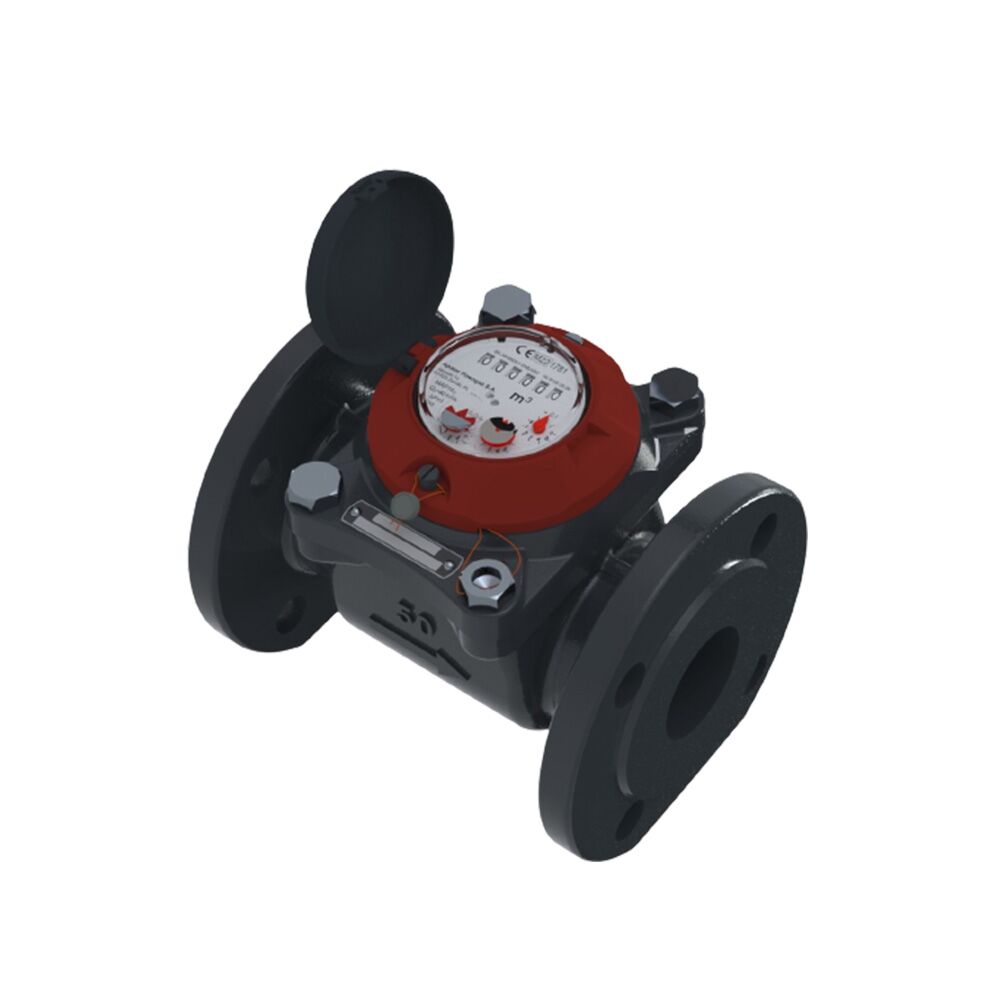

Article number 10200MWN130-80NK
| Article number | 10200MWN130-80NK |
| Brand | Apator |
| Packing unit | 1 |
| Commodity code | 90282000 |
| Order quantity per | 1 |
| Suitable for DN | DN 80 |
| Type of register | Dry |
| Display | 6 digits |
| Display | Analog |
| AMR system | AMR ready |
| Suitable for medium | Water |
| MID approved | Yes |
| Height | 219 mm |
| Length | 225 mm |
| Product weight | 14.2 kg |
| Connection 1 | Flange fixed |
| Connection 1 flange | DIN PN 10 |
| Connection 1 diameter | 80 mm |
| Connection 2 | Flange fixed |
| Connection 2 flange | DIN PN 10 |
| Connection 2 diameter | 80 mm |
| Material | Cast iron |
| Protection class | IP66 |
| Pressure loss | 10 kPa |
| Calibration value | 0.5 liter |
| Maximum operating temperature | 130 °C |
| Q₁ minimum flow rate | 1575 m³/h |
| Q₂ transitional flow rate | 2.52 m³/h |
| Q₃ permanent flow rate | 63 m³/h |
| Q₄ overload flow rate | 78.75 m³/h |
| Ratio R | 40 |
| Temperature class | T130 |
