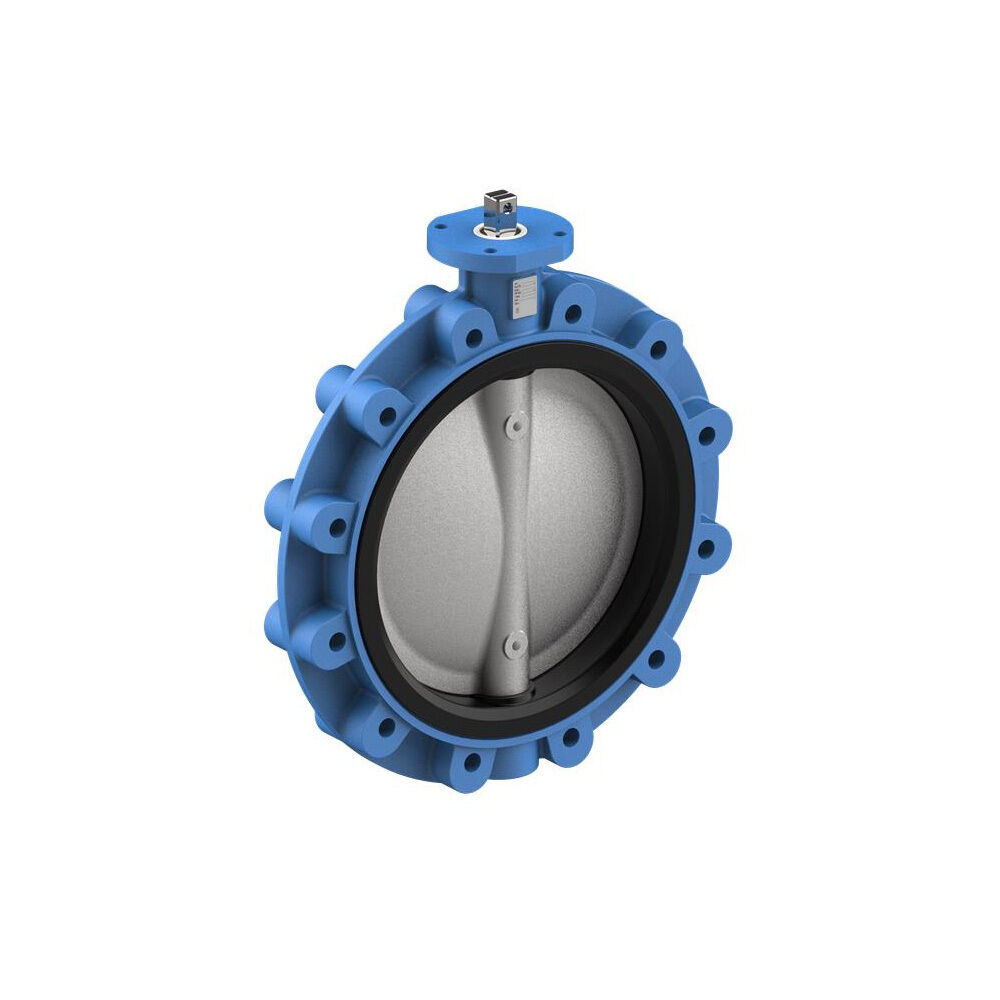

Cleton butterfly valve lug S64 DN200 PN10 KIWA (pending)

With a robust construction and advanced design, this butterfly valve is designed for reliable and durable performance in many drinking water applications. The KIWA quality mark ensures a product that meets high-quality standards and is reliable in use. With its easy installation and versatility, it is a great choice for both new installations and replacements.

Product Features

This butterfly valve has a housing of ductile iron and a duplex 2205 disc and a spindle of duplex F51. The butterfly valve is equipped with a vulcanized seat of EPDM. Furthermore, the butterfly valve has a DN 200 Lug-type connection with a flange connection according to EN1092 PN10. Lug-type butterfly valves are always provided with threaded holes so that they can be used both as end shut-off valves or between flanges.

The butterfly valve has an installation length of 60 mm according to EN 558-1 serie 64. For the drive, the butterfly valve is equipped with a top flange according to ISO 5211 F07. The flange has a bolt circle of ø70 mm and 4 x ø10 mm bolt holes. The spindle head has a size of 17 mm. This butterfly valve is not equipped with an actuator. Different actuators can be used on request.

Application

The epoxy coated housing ensures long lifetime and chemical resistance. This butterfly valve also has a centrally positioned disc, making it light and compact. This makes the butterfly valve suitable for drinking water up to PN 10. This butterfly valve is KIWA approved.
