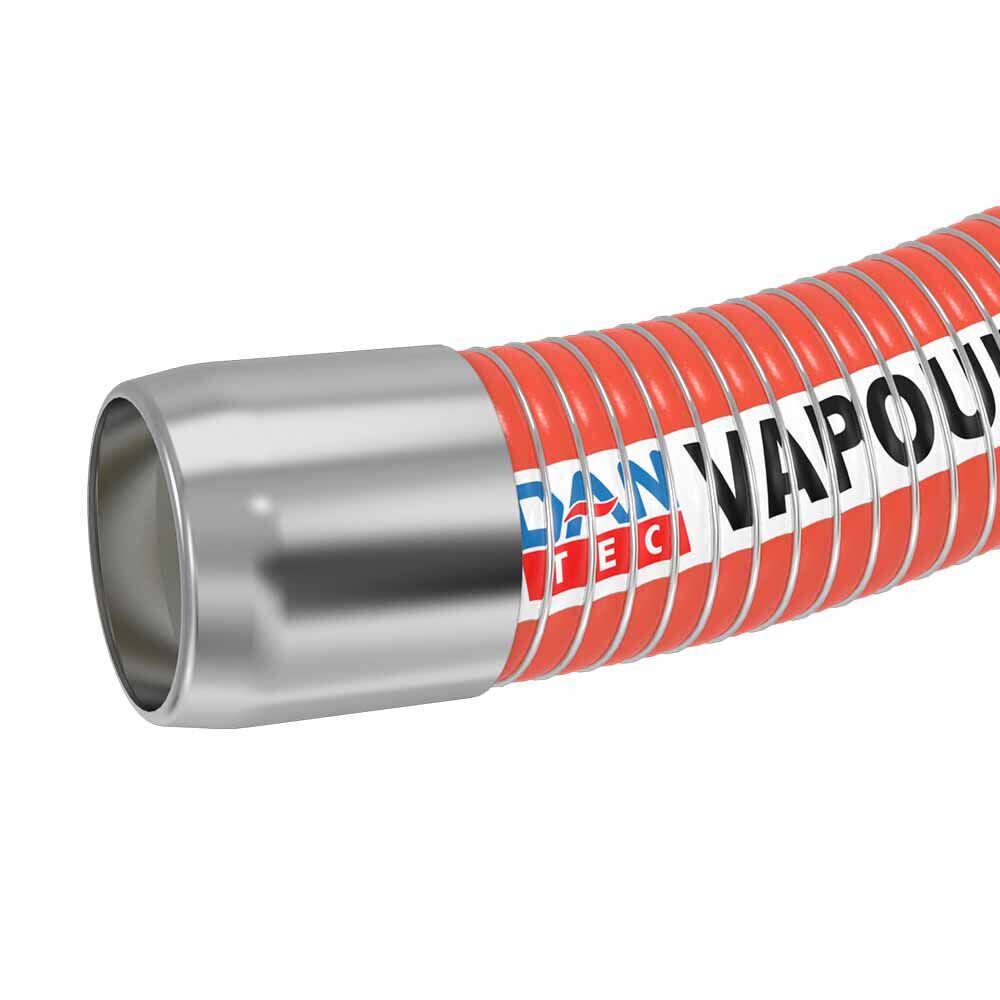

Dantec composite hose Danchem VR SS

Application

The Danchem VR SS has been specially developed as a vapour return hose. The recovery of vapours is often necessary when loading and unloading chemicals. It not only prevents unsafe or unhealthy situations, but also prevents odor nuisance. With its stainless steel inner helix and stainless steel outer helix, this composite hose is resistant to a wide range of chemicals.

Range

Available in inner diameter 50mm (2") up to and including 250mm (10").
With stainless steel inner helix and stainless steel outer helix.

Characteristics

• Temperature range: -30°C to +80°C
• Working pressure: 7 bar (200 psi)
• Vacuum: 0.5 bar
• Safety factor: 4:1

Standards and Approvals

• EN 13765:2018 Type 1
• US Coastguard

Hose Couplings

We provide our hoses with almost any desired coupling. From screw coupling to flange connection and from camlock to dry-break. View our catalog or inquire about the possibilities.

Inspection, repair, testing and certification

Our service does not end with the delivery of your hose. We also carry out inspections on hose assemblies in our own test center or on your company location. We repair hoses, test them and provide a test certificate.
