Article number 690552003

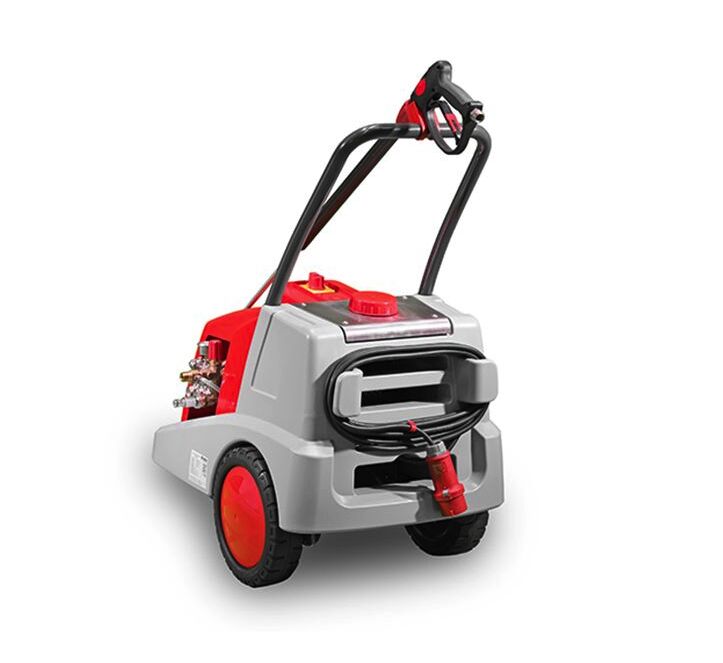

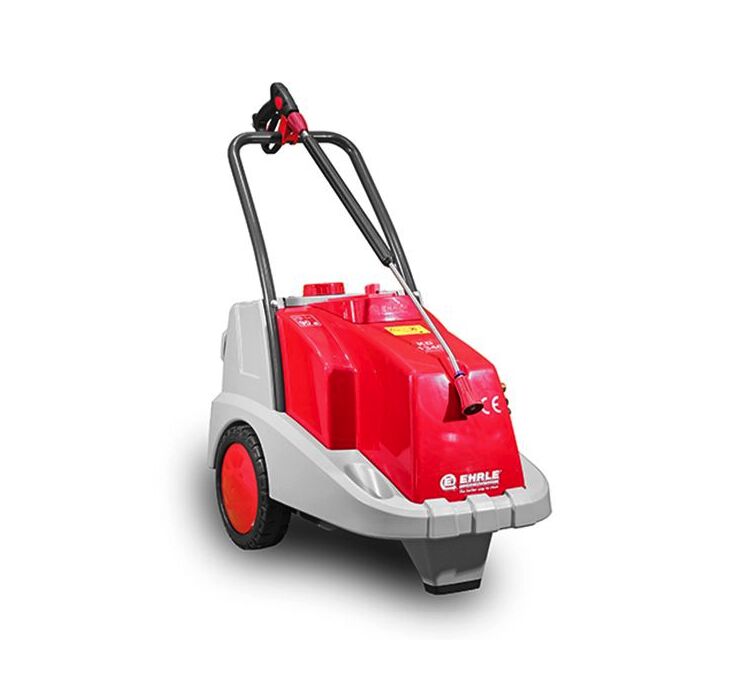

Robust, rotationally moulded, corrosion-resistant and self-supporting chassis Impact-resistant ABS housing Triplex plunger pump with nickel-plated brass pump head High-quality ceramic plungers and stainless steel valves Leakage return system Start-stop system with delay switch-off Complete switch-off after 20 minutes Unloader safety valve with infinitely variable pressure and flow rate regulation Two large rubber wheels with rubber support foot, suitable for rough terrain Storage space for all accessories Robust on/off rotary switch 7.5 metre power cable Removable ergonomic push handle
| Article number | 690552003 |
| Brand | Ehrle |
| Drive | 400 volts |
| Packing unit | 1 |
| Type of high pressure cleaner | Cold water |
| 45°C | |
| Order quantity per | 1 |
| Commodity code | 84243008 |
| Maximum working pressure | 21.7 l/min |
| Manufacturer country | DE |
| Equipment | Flat spray nozzle |
| Range | KD 4x4 |
| Position | Mobile |
| Safeguards | Regulator for adjustable pressure and flow |
| Safeguards | Total shutdown after 20 minutes |
| Safeguards | 3x16A slow |
| Safeguards | Start-stop system with cut-off delay |
| Equipment | 10m high pressure hose DN08 |
| Equipment | Detergent suction with flow regulator |
| Equipment | Lance with regulating nozzle |
| Equipment | Tank for detergent |
| Equipment | Trigger gun soft touch with quick coupling |
| Height | 1000 mm |
| Width | 620 mm |
| Length | 980 mm |
| Length connection cable | 7.5 m |
| Length hose | 10 m |
| Product weight | 89 kg |
| Minimum water output | 5 l/min |
| Minimum working pressure | 30 Bar |
| Maximum working pressure | 170 Bar |
| Frequency of power supply | 50 Hz |
| Overpressure | 190 Bar |
| Revolutions per minute (RPM) | 1400 rpm |
| Maximum working pressure | 170 Bar |
| Current capacity of power supply | 13.1 amp |
| Supply voltage | 400 Volts |
| 070 | |
| Power consumption | 7.4 kilowatts |
| Maximum water output | 21.7 L p/m |
