Article number 690563004

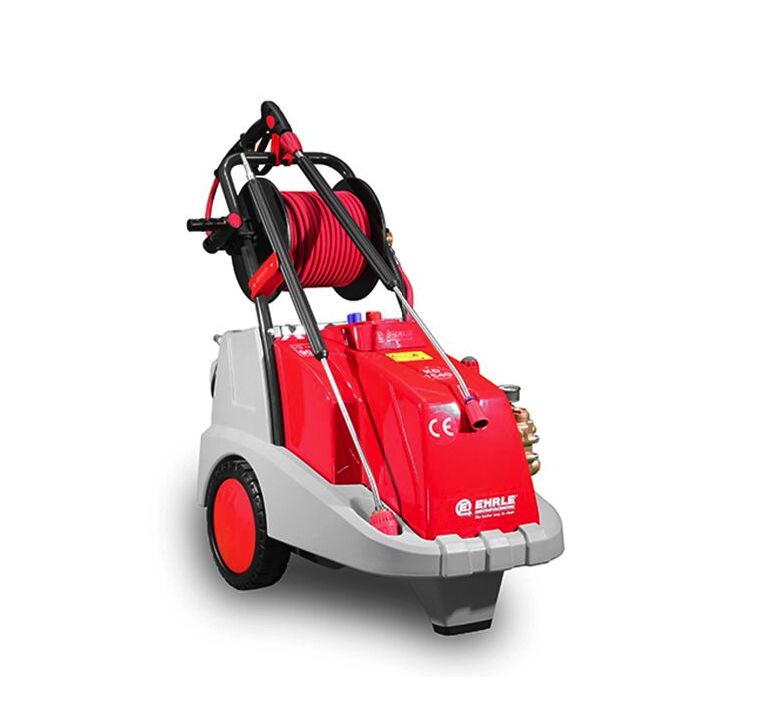

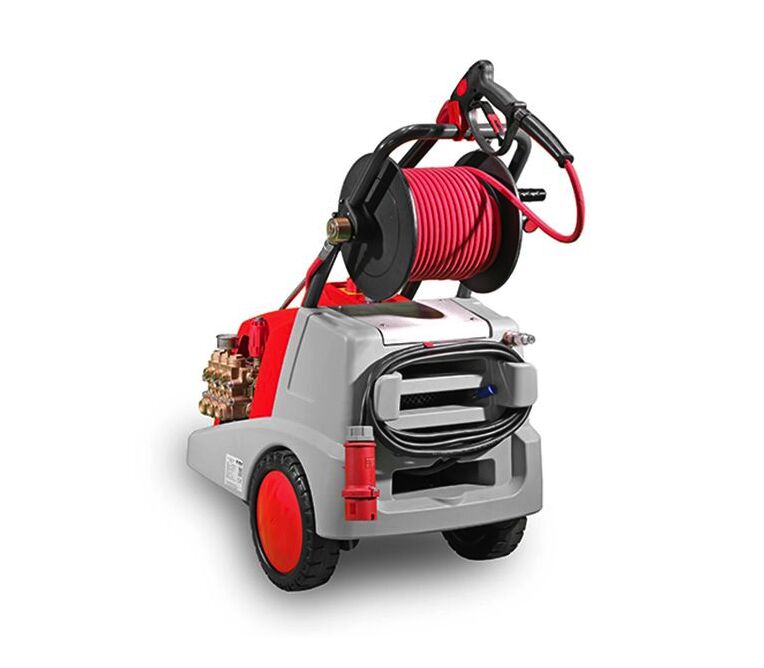

Robust, rotationally moulded, corrosion-resistant and self-supporting chassis Impact-resistant ABS housing Triplex plunger pump with brass pump head High-quality ceramic plungers Stainless steel valves Leakage return system Start-stop system with delay switch-off Complete switch-off after 20 minutes Unloader safety valve with infinitely variable pressure and flow rate regulation Two large rubber wheels with rubber support foot, suitable for rough terrain Storage space for all accessories Robust on/off rotary switch 7.5 metre power cable Removable ergonomic push handle
| Article number | 690563004 |
| Brand | Ehrle |
| Drive | 400 volts |
| Packing unit | 1 |
| Order quantity per | 1 |
| Maximum working pressure | 30 l/min |
| Commodity code | 84243008 |
| Manufacturer country | DE |
| Type of high pressure cleaner | Cold water |
| 45°C |
| Safeguards | Start-stop system with cut-off delay |
| Safeguards | Regulator for adjustable pressure and flow |
| Safeguards | Total shutdown after 20 minutes |
| Safeguards | 3x16A slow |
| Equipment | Water storage tank |
| Equipment | Trigger gun soft touch with quick coupling |
| Equipment | Lance with nozzle protection |
| Equipment | Lance with rotating nozzle |
| Equipment | Flat spray nozzle |
| Equipment | Hose drum |
| Equipment | Detergent suction with flow regulator |
| Equipment | 20m high pressure hose DN10 |
| Range | KD 4x4 |
| Position | Mobile |
| Height | 1000 mm |
| Width | 620 mm |
| Length | 980 mm |
| Length connection cable | 7.5 m |
| Length hose | 20 m |
| Product weight | 105 kg |
| Minimum water output | 5 l/min |
| Minimum working pressure | 30 Bar |
| Maximum working pressure | 120 Bar |
| Frequency of power supply | 50 Hz |
| Overpressure | 140 Bar |
| Revolutions per minute (RPM) | 1400 rpm |
| 150 | |
| Power consumption | 7.4 kilowatts |
| Maximum water output | 30 L p/m |
| Maximum working pressure | 120 Bar |
| Current capacity of power supply | 13.1 amp |
| Supply voltage | 400 Volts |
