Article number 690561002

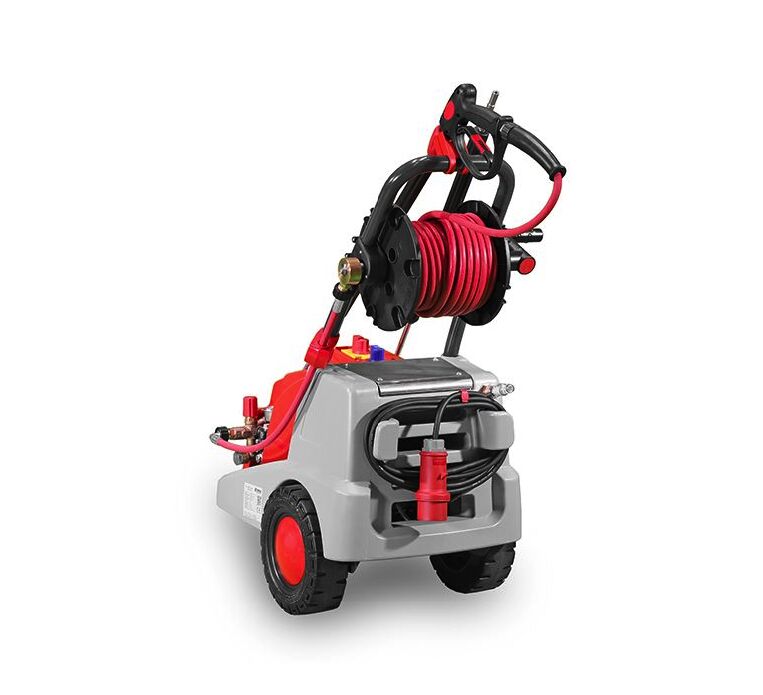

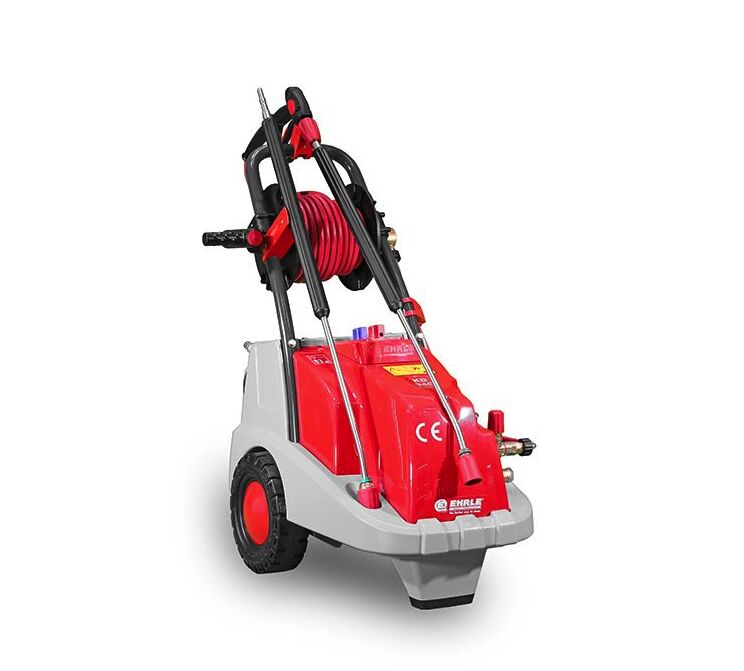

Robust, rotationally moulded, corrosion-resistant and self-supporting chassis Impact-resistant ABS housing Triplex plunger pump with nickel-plated brass pump head High-quality ceramic plungers Stainless steel valves Leakage return system Start-stop system with delay switch-off Complete switch-off after 20 minutes Unloader safety valve with infinitely variable pressure and flow rate regulation Two large rubber wheels with rubber support foot, suitable for rough terrain Storage space for all accessories Robust on/off rotary switch 5 metre power cable Removable ergonomic push handle
| Article number | 690561002 |
| Brand | Ehrle |
| Drive | 400 volts |
| Packing unit | 1 |
| Order quantity per | 1 |
| Maximum working pressure | 14 l/min |
| Commodity code | 84243008 |
| Manufacturer country | DE |
| Type of high pressure cleaner | Cold water |
| 45°C |
| Safeguards | Total shutdown after 20 minutes |
| Safeguards | Start-stop system with cut-off delay |
| Equipment | 15m high pressure hose DN08 |
| Equipment | Detergent suction with flow regulator |

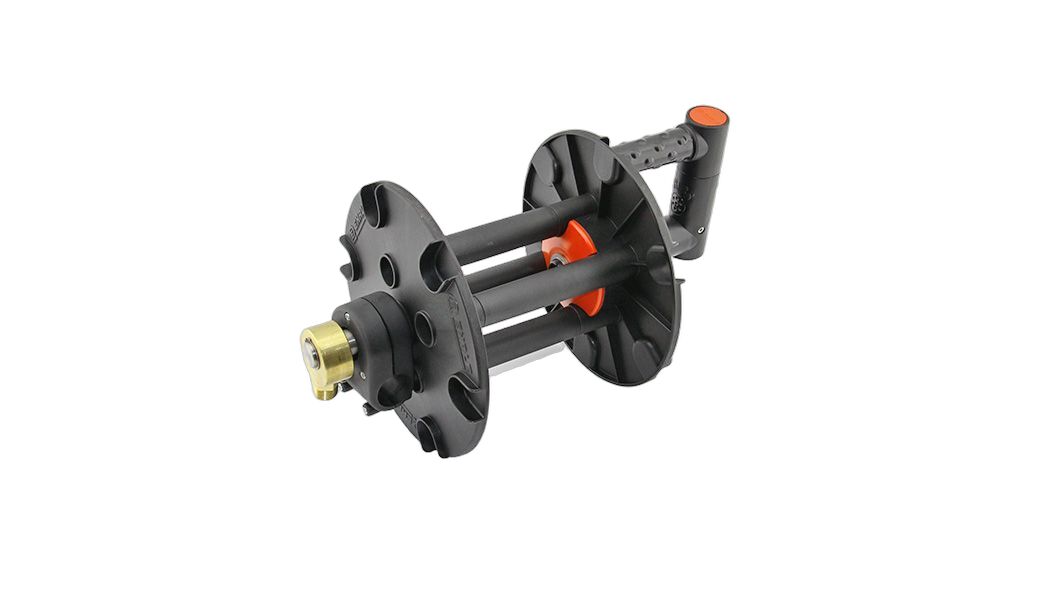

| Equipment | Hose drum |
| Equipment | Flat spray nozzle |
| Equipment | Lance with rotating nozzle |
| Equipment | Lance with nozzle protection |
| Equipment | Trigger gun standard with quick coupling |
| Equipment | Water storage tank |
| Range | KD 3x3 |
| Position | Mobile |
| Safeguards | 3x16A slow |
| Safeguards | Regulator for adjustable pressure and flow |
| Height | 950 mm |
| Width | 485 mm |
| Length | 805 mm |
| Length connection cable | 5 m |
| Length hose | 15 m |
| Product weight | 58 kg |
| Minimum water output | 5 l/min |
| Minimum working pressure | 30 Bar |
| Maximum working pressure | 190 Bar |
| Frequency of power supply | 50 Hz |
| Overpressure | 210 Bar |
| Supply voltage | 400 Volts |
| 045 | |
| Power consumption | 5.2 kilowatts |
| Current capacity of power supply | 9.1 amp |
| Maximum working pressure | 190 Bar |
| Maximum water output | 14 L p/m |
| Revolutions per minute (RPM) | 1400 rpm |
