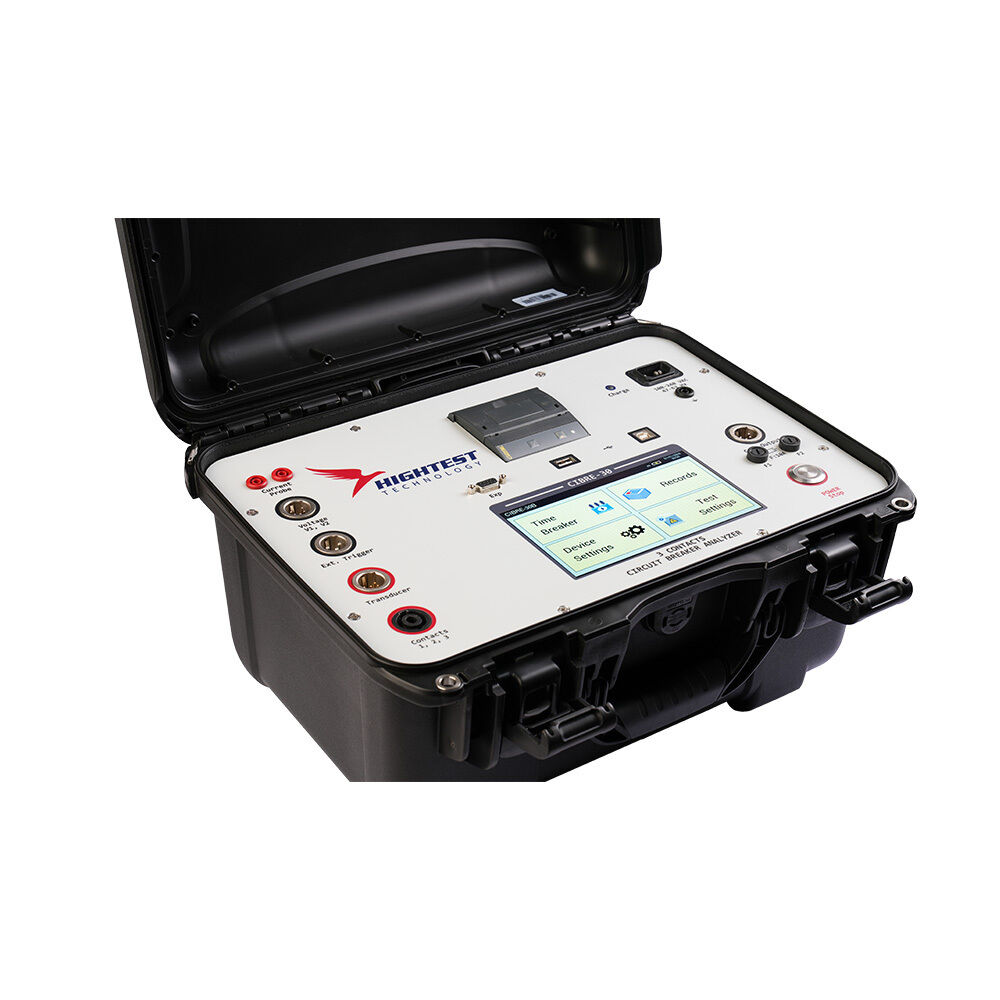

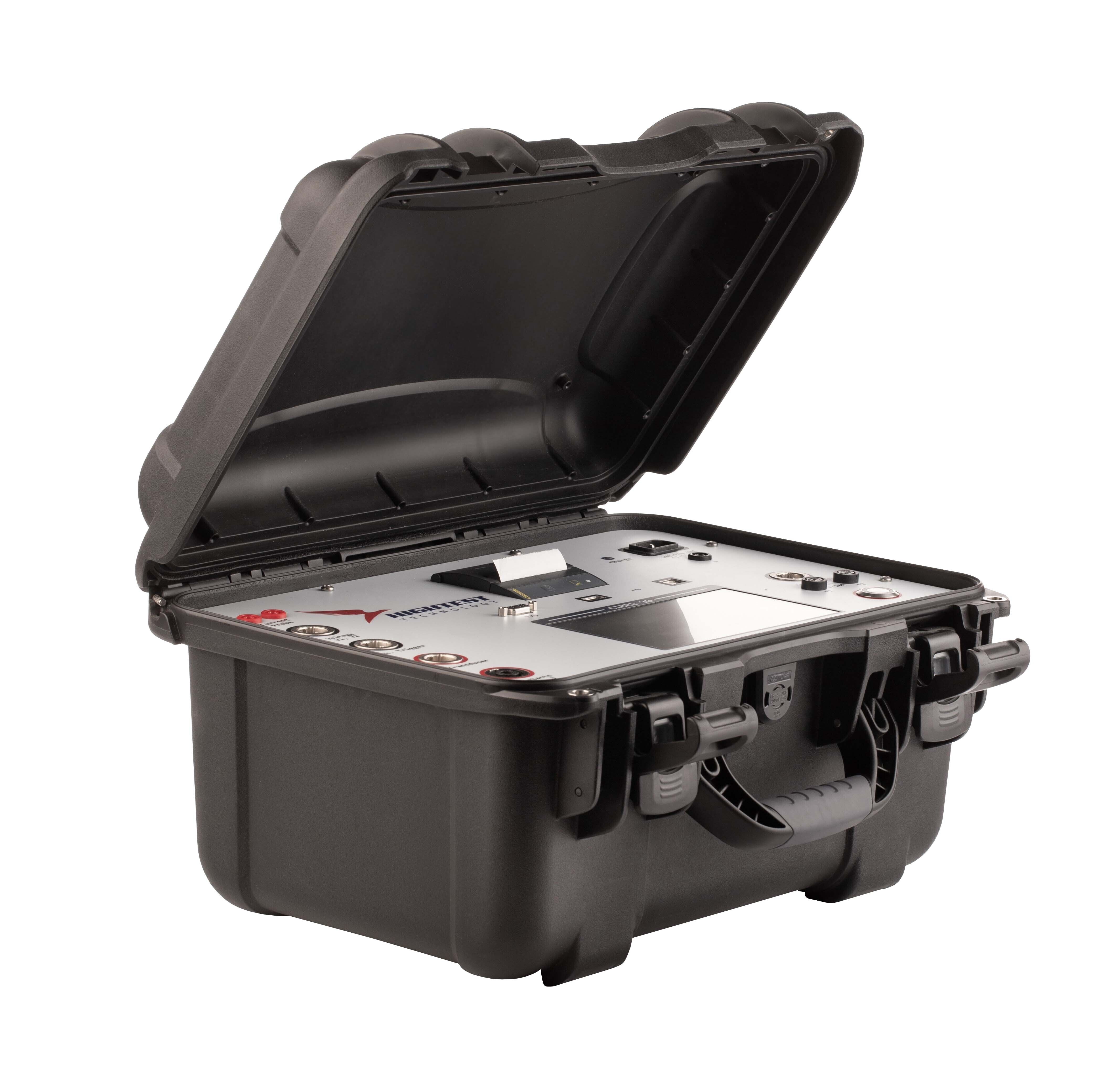

hightest circuite breaker Analyser CIBRE 30 3-contact

CIBRE-30, 3-Contact Circuit Breaker Analyser is designed using advanced engineering technology to test contact timings of circuit breakers. CIBRE-30 has fast, easy and accurate measurement features through its user-friendly software. CIBRE-30 is a battery-powered device (optional feature), allowing users to perform tests even without a power supply during field tests. Contact Timing Tests Contact timing tests are performed to compare the breakers’ main & resistor contact performance against the manufactures specifications. The breakers OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN & OPEN-CLOSE-OPEN operations are timed in milliseconds (ms) and cycles and then compared with the manufacturers’ specifications to determine the performance of the circuit breaker. Motion Tests CIBRE-30 can use to perform motion tests such as Transducer Speed, Stroke and Bounce. Slower transducer speed can reduce the breaking capacity of the main contact, while faster speed can cause mechanical damage to the damping components and cause excessive vibration. So it is necessary to test the transducer speed to compare it with the manufacturer’s specifications. The HighTest data management platform (DMP Software) can also be used to analyse the test reports produced by CIBRE-30 on a PC, and the measurement results can be easily exported and stored on the PC. CIBRE-30 features a 7-inch large colour touch display, which is visible under bright sunlight and dim light conditions. Operators can easily print the measurement results with the 2.28-inch built-in printer of CIBRE-30. The results can also save to a USB flash drive or the device’s internal memory. Multi-language capability and user-friendly operation menu make it easy to control CIBRE-30. Despite its impressive capabilities, the CIBRE-30 Series remains compact and robust, boasting an IP67 protection class when the case is closed. Weighing in at a just 8 kg, this device is your lightweight, portable solution for Timing Tests that delivers uncompromising accuracy and efficiency. Why do we need to test circuit breakers? It is essential to test circuit breakers regularly. Contact Timing Tests and Motion tests are performed to determine the optimal performance of the breakers. The testing can determine improper breaker operations in case of system fault and improve system reliability. FEATURES • Contact Timing (O, C, O-C, C-O and O-C-O) • Motion Tests (Transducer Speed, Stroke, Bounce) • 3 Dry Contact Inputs • Timing Accuracy: 0.05% rdg ± 0.1 ms • Timing Windows: 1s, 10s & 20s • Contact Detection Range: Closed ≤20 Ω & Open ≥5000 Ω • Optional Battery & Bluetooth Communication • 2.28” Built-in Thermal Printer
