RUD VIP-Control link VCG-13

Article number 79882458660

RUD VIP-Control link VCG-13
RUD VIP-Control link VCG-13
RUD VIP-Control link VCG-13
RUD VIP-Control link VCG-13
Zoom in

Description

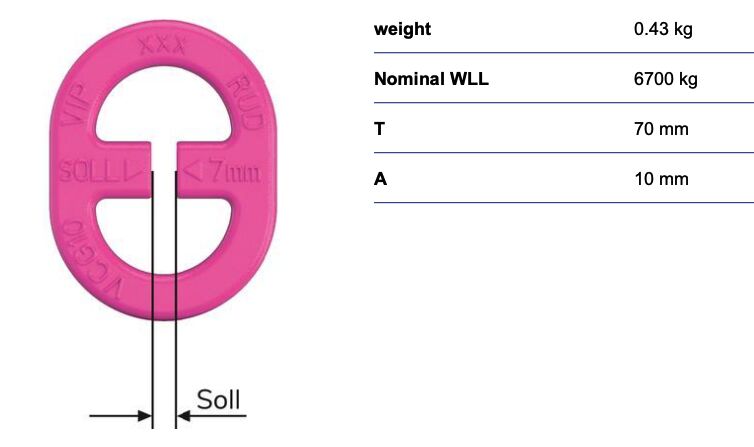

VIP-Control-link VCG-13 – Reliable overload control for lifting chains

The VIP-Control-link VCG-13 is designed for demanding lifting applications in the industry. This system offers reliable overload monitoring, easy mounting and additional safety, and integrates perfectly with the RUD lifting system.

Key features:

  • Integrated overload control that signals deviations via indicator bars.
  • Easy mounting by attaching to the coupling link and lifting chain, allowing for quick installation.
  • Made of original RUD components, ensuring optimum safety and durability.

Smart functionality:

  • Indicator bars provide a clear visual check for overload, so that deviations are quickly noticed.
  • The controlled play only allows the link to deform at a specific load, supporting reliable operation.
  • A bypass connection ensures that appropriate adjustments can be made in the event of repeated overload signals for additional safety.

User-friendly & versatile:

  • Easy installation with a hammer for fixing coupling links.
  • In case of an overload signal, the control link can be easily replaced, ensuring safety.
  • Compatible with RUD hoisting systems, meaning that this link is suitable for existing hoisting arrangements.

Choose the VIP Control Link VCG-13 for reliable overload control and optimum safety – the ideal choice for professionals in the hoisting and industrial sectors. Experience the quality and reliability for yourself!

Read more

Specifications

Article number 79882458660
Brand RUD
EAN 4008244384418
Order quantity per 1
Commodity code 73159000
Manufacturer country DE
Packing unit 1

Range VIP grade 100

Product weight 0.43 kg

Material CR-NI-MO steel
Material finish Pink coating
